GU LINER SYSTEMS

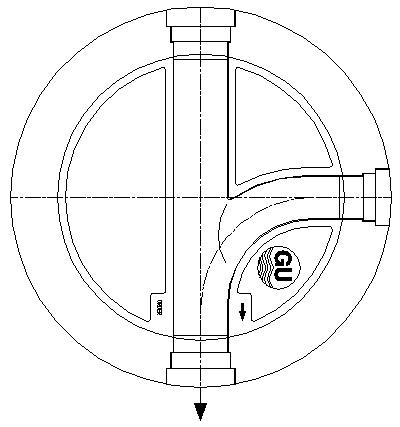

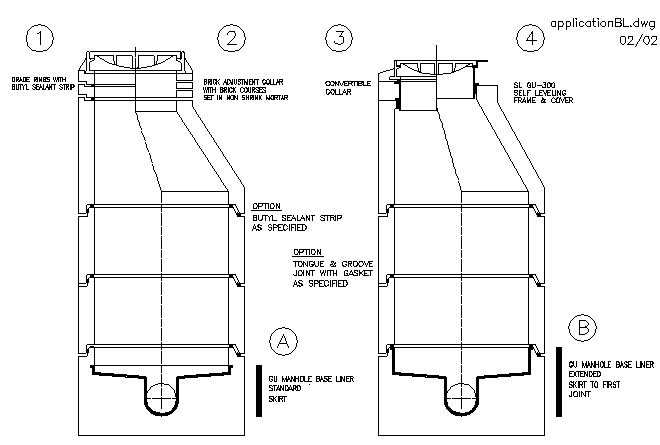

APPLICATION OPTIONS
Minimum wall thickness for manhole base structure required to accept GU-Standard bells.
Pipe Nom. Dia
Min. wall thickness for manhole base structure
6"
5"
8"
5"
10"
5"
12"
5"
15"
7"
18"
8"
21"
9"
24"
10"
27"
10"
30"
10"
36"
12"
